ST1-021061DF-01
|

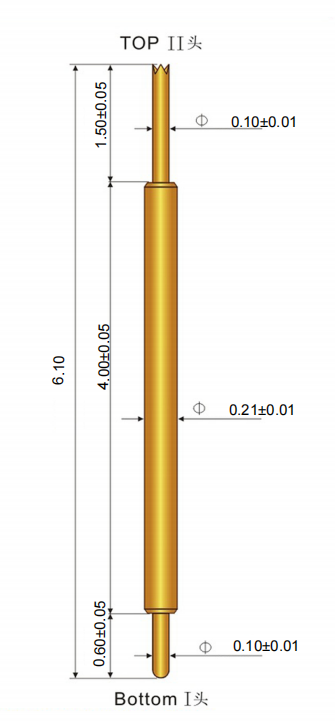

Mechanical Specifications(技术要求） |
|
|
Full Stroke(满冲程) |
1.00mm |
|
Rated Stroke(额定程) |
0.65mm |
|
Spring Force(额定弹力） |
18gf±20% |
| Materials(plated)(材质与镀层) | |
|
Barrel(针管) |
Phosphor Bronze Gold plated |
|
Plunger Top(针头Top) |
Hardened BeCu Gold plated |
|
Plunger Bottom(针头Bottom) |
Hardened BeCu Gold plated |
|
Spring(弹弓) |
Music wire Gold plated |
| Electrical Specifications(电子参数) | |
|
Rated Current(额定电流) |
1.0A |
|
Contact Resistance(接触电阻) |
100 mohm Max |
|
Bandwidth(频宽) |
|
| head shape can be customized（头型可定制 ） | |
|
|
|
